Keystone KTLD-2LEDT8-UV-IS-VDIM Type A LED T8 Dimmable Driver/Ballast 2-Lamp

SKU
KTLD-2LEDT8-UV-IS-VDIM
Add to Compare
$41.95
  • Buy 10 for $39.95 each and save 5%
  • Buy 20 for $35.95 each and save 14%
  • Keystone KTLD-2LEDT8-UV-IS-VDIM

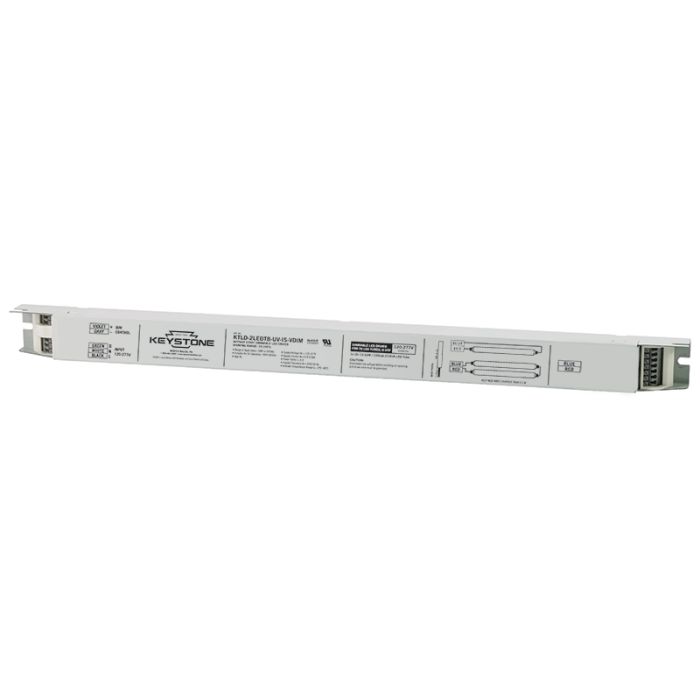

Keystone KTLD-2LEDT8-UV-IS-VDIM Type A LED T8 Dimming Driver Ballast

This Keystone LED Driver is designed to operate up to 2 Smart Drive Type A LED T8 lamps and allows for 0-10V dimming (0-10V dimmer sold separately). This LED Driver acts like a ballast for the Type A LED T8 lamps and is only compatible with LED - Fluorescent lamps will not work at all on this driver. Instant Start, 120-277V with a high ballast factor. Highly advise using these with Keystone's Smart Drive Type A LED T8 lamps, but this driver is also compatible with most 10W-18W UL Type A LED T8 lamps.

Brochures & Cut Sheets

Keystone Type A Dimmable LED Driver 2-lamp Keystone Type A LED T8 Dimming Driver/Ballast Spec Sheet

More Information
Manufacturer Keystone
Number of Lamps 2
Starting Method Instant Start
Ballast Factor High
Volts 120-277V
Dimmable 0-10V
Lamp Type LED T8
Input Watts Varies based on LED T8 (10W-18W lamps)
Nominal Line Amps N/A
Power Factor High
Harmonic Total N/A
Crest Factor N/A
Minimum Starting Temp -4°F
Case Quantity 20
Manufacturer Part # KTLD-2LEDT8-UV-IS-VDIM
Manufacturer Order # N/A
Premier Part # KTLD-2LEDT8-UV-IS-VDIM
