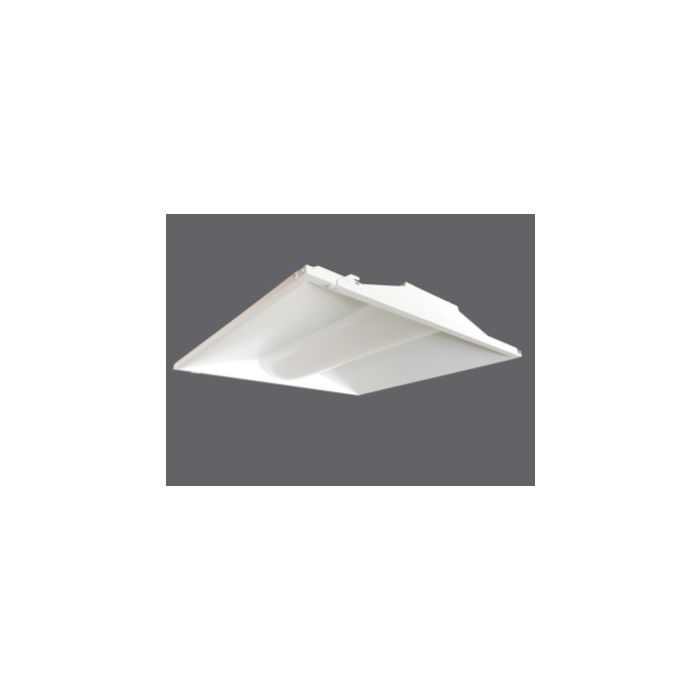

Keystone KT-RKIT23-22D-850-VDIM 2x2 LED DoorFrame Retrofit 23W 5000K

  • Buy 6 for $63.95 each and save 9%
  • Keystone KT-RKIT23-22D-850-VDIM

Keystone KT-RKIT23-22D-850-VDIM 2x2 LED DoorFrame Retrofit 23W 5000K

Keystone's FutureFit Troffer Kit is designed to retrofit 2x2 or 2x4 fluorescent recessed troffers without modifying existing fixture mounting. Powered by Keystone's integrated 0-10V dimmable LED driver. Suitable for damp locations. Rated for 50,000 hours with a 5 year manufacturer warranty. Compatible with Keystone SmartSafe Emergency backup drivers. DLC listed. Available in 3500K, 4000K and 5000K color temps and in wattages of 23W (2x2), 30W (2x4) and 36W (2x4).


Brochures & Cut Sheets

Keystone 2x2 LED Retrofit Kits Keystone LED DoorFrame Retrofit Kit Spec Sheet

More Information
Manufacturer Keystone
Volts 120-277V
HID Equivalent N/A
Fluorescent Equivalent 48W
Watts 23W
Lumens 3070
Lumens Per Watt 134
CRI 80+
Color Temperature 5000K
Dimmable 0-10V
Distribution N/A
Length (M.O.L.) Inches 23.9
Height (Inches) 23.9
Width (Inches) 3.07
Wet/Damp Rated Damp
Maximum Temp 50ºC
Rated Hours 50,000
Warranty 5 Year
Manufacturer Order # KT-RKIT23-22D-850-VDIM
Premier Part # NLED0942
