Keystone KT-RKIT-RP-6-800-830 9W Rectangular LED Retrofit 3000K

  • Keystone KT-RKIT-RP-6-800-830 Rectangular LED Kit
  • 8.5W - 830 Lumens - 3000K

Keystone KT-RKIT-RP-6-800-830 9W Rectangular LED Retrofit 3000K

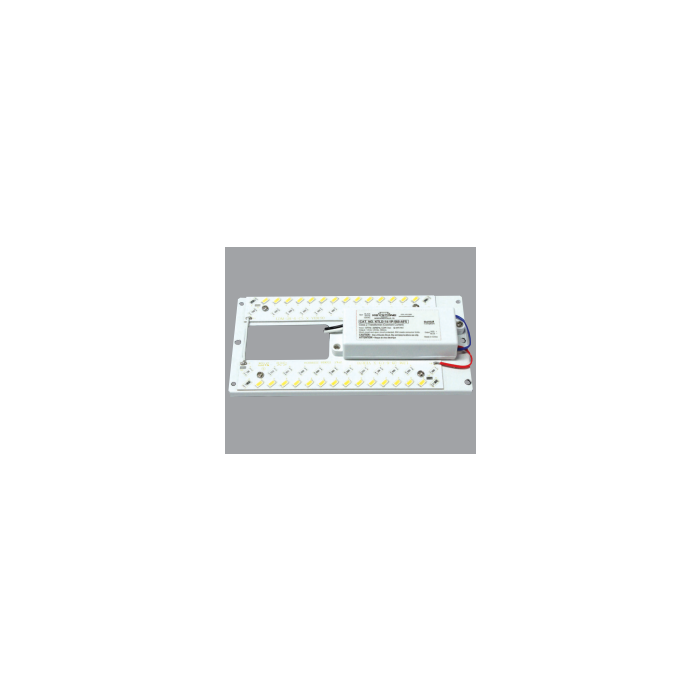

Upgrade surface-mount canopy/security fluorescent-style luminaires to LED! Designed for after-market or OEM installation (OEM must have UL LED Luminaire General Coverage file). Highly reflective white soldermask. Low profile WAGO push connectors. UL recognized components. Over Current, Short Circuit and Open Circuit Protection. Class 2 Output. Available in 800 lumens and 1600 lumens.


Brochures & Cut Sheets

Keystone FutureFit Rectangular LED Retrofit Kits' Keystone FutureFit Rectangular Spec Sheet

More Information
Manufacturer Keystone
Watts 8.5
Lumens 830
Lumens Per Watt 97.65
Volts 120
Color Temperature 3000K
Dimmable Non
Drive Current 560mA
Driver Efficiency 82%
Length (M.O.L.) Inches 6.5
Width (Inches) 3.27
Height (Inches) 0.24
Rated Hours 36,000
Wet/Damp Rated Damp Rated
Maximum Temp 194°F
Warranty 5 Year
Manufacturer Part # KT-RKIT-RP-6-800-830
Manufacturer Order # N/A
Premier Part # NLED0627
Write your content here...
Back to Top

Keystone KT-RKIT-RP-6-800-830 9W Rectangular LED Retrofit 3000K

$57.95
