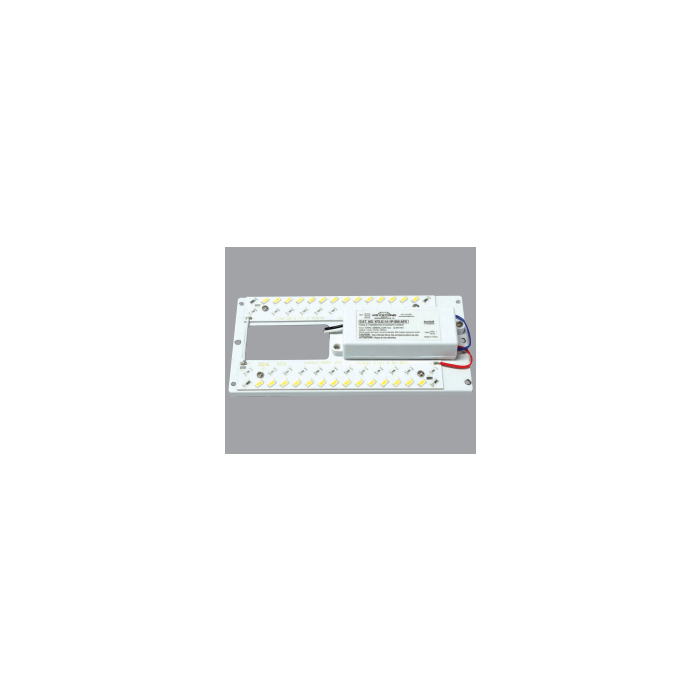

Keystone KT-RKIT-RP-6-1600-840 17W Rectangular LED Retrofit 4000K

  • Keystone KT-RKIT-RP-6-1600-840 Rectangular LED Kit
  • 17W - 1600 Lumens - 4000K

Keystone KT-RKIT-RP-6-1600-840 17W Rectangular LED Retrofit 4000K

Upgrade surface-mount canopy/security fluorescent-style luminaires to LED! Designed for after-market or OEM installation (OEM must have UL LED Luminaire General Coverage file). Highly reflective white soldermask. Low profile WAGO push connectors. UL recognized components. Over Current, Short Circuit and Open Circuit Protection. Class 2 Output. Available in 800 lumens and 1600 lumens and 4000K or 5000K color temperatures.


Brochures & Cut Sheets

Keystone FutureFit Rectangular LED Retrofit Kits' Keystone FutureFit Rectangular Spec Sheet

More Information
Manufacturer Keystone
Watts 17W
Lumens 1600
Lumens Per Watt 94
Volts 120
Color Temperature 4000K
Dimmable Non
Drive Current 560mA
Driver Efficiency 82%
Length (M.O.L.) Inches 6.5
Width (Inches) 3.27
Height (Inches) 0.24
Rated Hours 36,000
Wet/Damp Rated Damp Rated
Maximum Temp 194°F
Warranty 5 Year
Manufacturer Part # KT-RKIT-RP-6-1600-840
Manufacturer Order # N/A
Premier Part # NLED0633
Write your content here...
Back to Top

Keystone KT-RKIT-RP-6-1600-840 17W Rectangular LED Retrofit 4000K

$39.95
