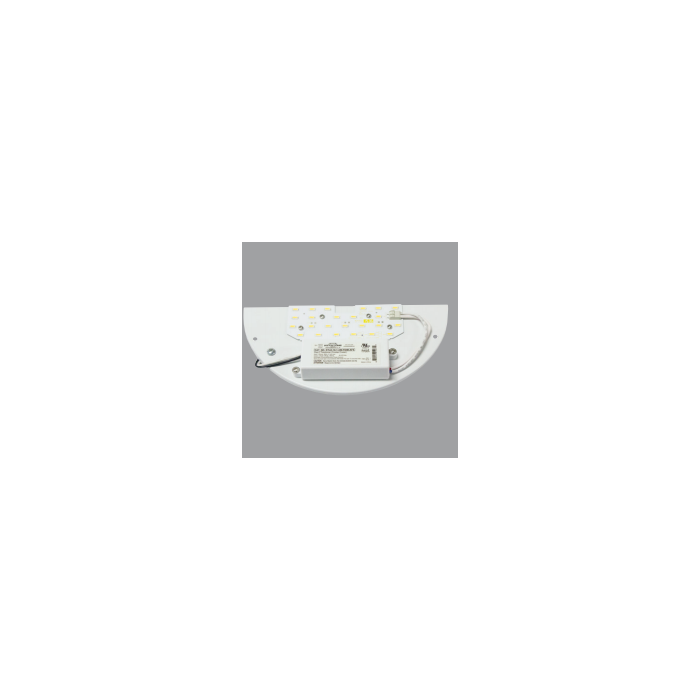

Keystone KT-RKIT-HCP-8-650-830-FDIM 7W Wall Sconce LED Retrofit 3000K

  • Keystone KT-RKIT-HCP-8-650-830-FDIM
  • LED Wall Sconce Retrofit Plate 7W 3000K

Keystone KT-RKIT-HCP-8-650-830-FDIM 7W Wall Sconce LED Retrofit 3000K

Upgrade wall-mount fluorescent-style luminaires to an LED solution. Designed for after-market or OEM installation (OEM must have UL LED Luminaire General Coverage file). Highly reflective white soldermask. Low profile WAGO push connectors. UL recognized components. Over Current, Short Circuit and Open Circuit Protection. Class 2 Output. Available in 650 lumens and 1150 lumens.


Brochures & Cut Sheets

Keystone FutureFit Sconce LED Retrofit Kits' Keystone FutureFit Sconce Spec Sheet

More Information
Manufacturer Keystone
Watts 5.5W
Lumens 680
Lumens Per Watt 123
Volts 120
Color Temperature 3000K
Dimmable Forward Phase Control Dimming
Drive Current 350mA
Driver Efficiency 80%
Length (M.O.L.) Inches 7.87
Width (Inches) 3.94
Height (Inches) 0.8
Rated Hours 36,000
Wet/Damp Rated Damp Rated
Maximum Temp 194°F
Warranty 5 Year
Manufacturer Part # KT-RKIT-HCP-8-650-830-FDIM
Manufacturer Order # N/A
Premier Part # NLED0650
Write your content here...
Back to Top

Keystone KT-RKIT-HCP-8-650-830-FDIM 7W Wall Sconce LED Retrofit 3000K

$47.95
