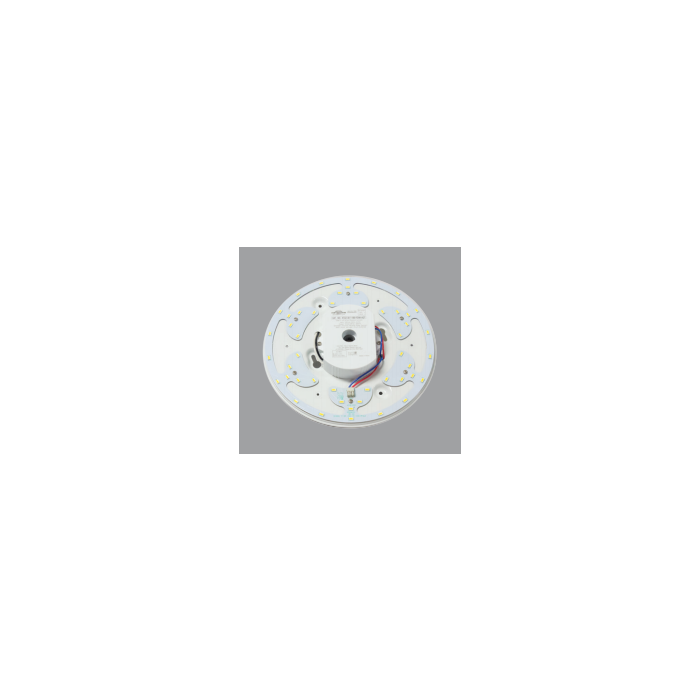

Keystone KT-RKIT-CP-8-2200-850-VDIM /G2 16W 8" Circular LED Retrofit 5000K
- Keystone KT-RKIT-CP-8-2200-850-VDIM /G2 8" Circular LED Kit
- 16W - 2240 Lumens - 5000K - 0-10V Dimming
Keystone KT-RKIT-CP-8-2200-850-VDIM /G2 16W Circular LED Kit
Upgrade circular surface-mount fluorescent-style luminaires to an LED solution. Designed for after-market or OEM installation (OEM must have UL LED Luminaire General Coverage file). Highly reflective white soldermask. Low profile WAGO push connectors. UL recognized components. Over Current, Short Circuit and Open Circuit Protection. Class 2 Output. Available in 1600 lumens and 2200 lumens, and in 120V phase control dimming or 0-10V 120-277V dimming.
| Manufacturer | Keystone |
|---|---|
| Watts | 15.5W |
| Lumens | 2240 |
| Lumens Per Watt | 145 |
| Volts | 120-277V |
| Kelvin | 5000K |
| Color Temperature | 5000K |
| Dimmable | 0-10V |
| Drive Current | 560mA |
| Driver Efficiency | 80% |
| Nominal Size | 8" |
| Length (M.O.L.) Inches | 7.86 |
| Width (Inches) | 4.51 |
| Height (Inches) | N/A |
| Rated Hours | 93,000 |
| Wet/Damp Rated | Damp Rated |
| Maximum Temp | 194°F |
| Warranty | 10 Year |
| Manufacturer Part # | KT-RKIT-CP-8-2200-850-VDIM /G2 |
| Manufacturer Order # | KT-RKIT-CP-8-2200-850-VDIM /G2 |
| Premier Part # | NLED0678 |
