Keystone KT-RKIT-CP-8-1600-840-FDIM 13W 8" Circular LED Retrofit 4000K

Keystone KT-RKIT-CP-8-1600-840-FDIM 13W 8" Circular LED Retrofit 4000K

Be the first to review this product

$49.95
OR

Quick Overview


  • Keystone KT-RKIT-CP-8-1600-840-FDIM 8" Circular LED Kit

  • 13W - 1750 Lumens - 4000K - 120V Phase Control Dimming

Details

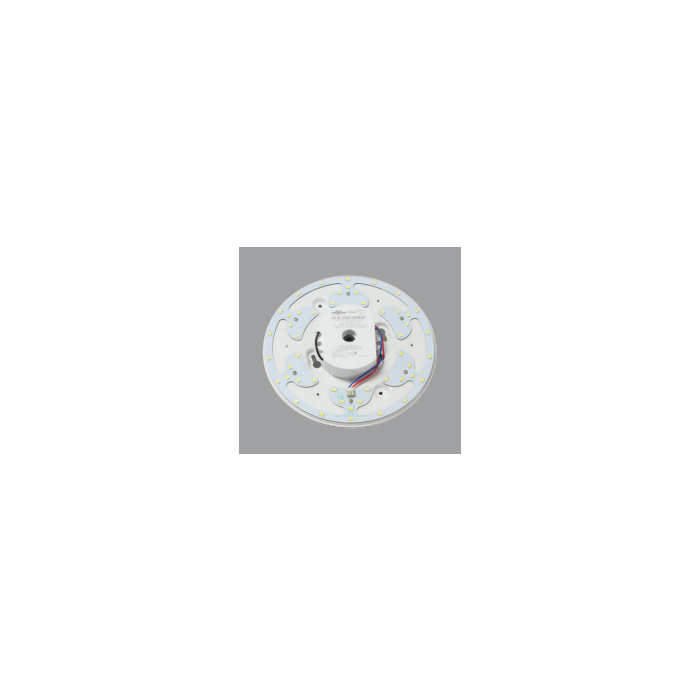

Keystone KT-RKIT-CP-8-1600-840-FDIM 13W Circular LED Kit

Upgrade circular surface-mount fluorescent-style luminaires to an LED solution. Designed for after-market or OEM installation (OEM must have UL LED Luminaire General Coverage file). Highly reflective white soldermask. Low profile WAGO push connectors. UL recognized components. Over Current, Short Circuit and Open Circuit Protection. Class 2 Output. Available in 1600 lumens and 2200 lumens, and in 120V phase control dimming or 0-10V 120-277V dimming.


Brochures & Cut Sheets

Keystone FutureFit Circular LED Retrofit Kits' Keystone FutureFit Circular Spec Sheet

Additional Information

Watts 13W
Lumens 1750
Lumens Per Watt 135
Volts 120V
Color Temperature 4000K
Dimmable Phase Control
Drive Current 560mA
Driver Efficiency 80%
Length (M.O.L.) Inches 7.01
Width (Inches) 3.70
Height (Inches) N/A
Rated Hours 93,000
Wet/Damp Rated Damp Rated
Maximum Temp 194°F
Warranty 10 Year
Manufacturer Keystone
Manufacturer Part # KT-RKIT-CP-8-1600-840-FDIM
Manufacturer Order # KT-RKIT-CP-8-1600-840-FDIM
Premier Part # N/A
