Keystone KT-RKIT-24-4000-850-VDIM 36W Linear LED 2x4 FutureFit 5000K
- Keystone KT-RKIT-24-4000-850-VDIM
- 2x4 Troffer Linear LED Retrofit 5000K 0-10V dimming

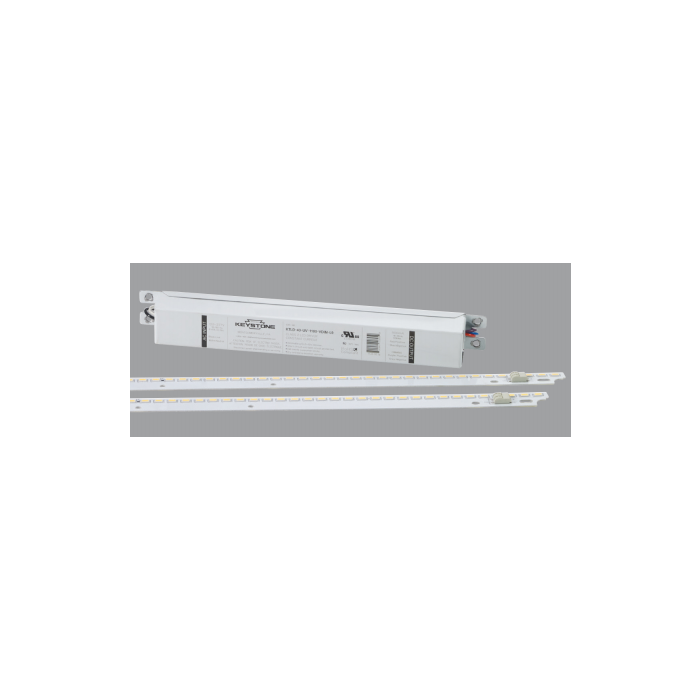

Keystone KT-RKIT-24-4000-850-VDIM 36W Linear LED 2x4 FutureFit Module 5000K
Upgrade your indoor fluorescent troffer style luminaires to LED with Keystone's FutureFit! Designed for after-market or OEM installation (OEM must have UL LED Luminaire General Coverage file). Highly reflective white soldermask. Low profile WAGO push connectors. UL recognized components. Over Current, Short Circuit and Open Circuit Protection. Class 2 Output. Available in 2x2 and 2x4 configurations for different troffer sizes and 3500K/4000K/5000K color temperatures. 2x4 size available in 4000 lumen or 5000 lumen configuration. 0-10V dimming.
Brochures & Cut Sheets
Manufacturer | Keystone |
---|---|
Watts | 36W |
Lumens | 4000 |
Lumens Per Watt | 111 |
Volts | 120-277V |
Color Temperature | 5000K |
Dimmable | 0-10V |
Drive Current | 550mA |
Driver Efficiency | 82% |
Length (M.O.L.) Inches | 43.10 |
Width (Inches) | 0.70 |
Height (Inches) | N/A |
Rated Hours | 36,000 |
Wet/Damp Rated | Damp Rated |
Maximum Temp | 194°F |
Warranty | 5 Year |
Manufacturer Part # | KT-RKIT-24-4000-850-VDIM |
Manufacturer Order # | N/A |
Premier Part # | KT-RKIT-24-4000-850-VDIM |
