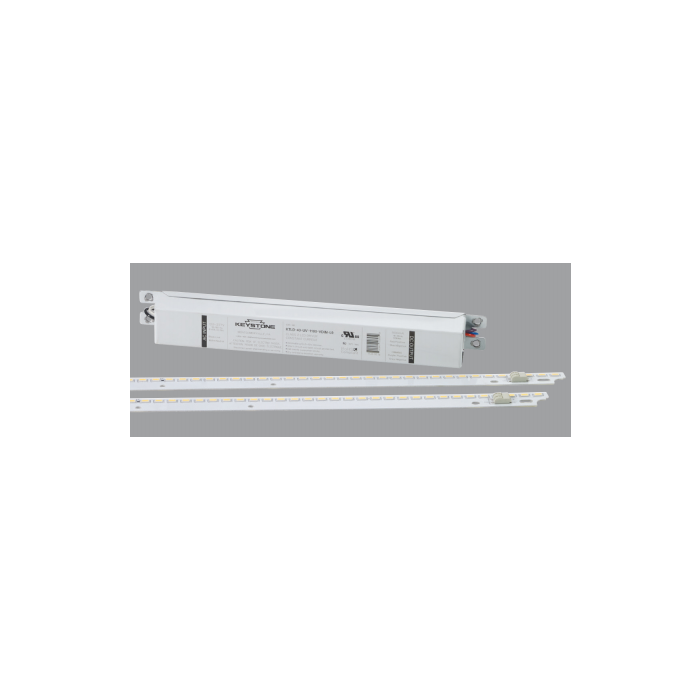

Keystone KT-RKIT-24-4000-840-VDIM 36W Linear LED 2x4 FutureFit 4000K

SKU
KT-RKIT-24-4000-840-VDIM
Add to Compare
$116.95
  • Keystone KT-RKIT-24-4000-840-VDIM
  • 2x4 Troffer Linear LED Retrofit 4000K 0-10V dimming

Keystone KT-RKIT-24-4000-840-VDIM 36W Linear LED 2x4 FutureFit Module 4000K

Upgrade your indoor fluorescent troffer style luminaires to LED with Keystone's FutureFit! Designed for after-market or OEM installation (OEM must have UL LED Luminaire General Coverage file). Highly reflective white soldermask. Low profile WAGO push connectors. UL recognized components. Over Current, Short Circuit and Open Circuit Protection. Class 2 Output. Available in 2x2 and 2x4 configurations for different troffer sizes and 3500K/4000K/5000K color temperatures. 2x4 size available in 4000 lumen or 5000 lumen configuration. 0-10V dimming.


Brochures & Cut Sheets

Keystone FutureFit Linear LED Retrofit Kits' Keystone FutureFit Linear Spec Sheet

More Information
Manufacturer Keystone
Watts 36W
Lumens 3860
Lumens Per Watt 107
Volts 120-277V
Color Temperature 4000K
Dimmable 0-10V
Drive Current 550mA
Driver Efficiency 82%
Length (M.O.L.) Inches 43.10
Width (Inches) 0.70
Height (Inches) N/A
Rated Hours 36,000
Wet/Damp Rated Damp Rated
Maximum Temp 194°F
Warranty 5 Year
Manufacturer Part # KT-RKIT-24-4000-840-VDIM
Manufacturer Order # N/A
Premier Part # KT-RKIT-24-4000-840-VDIM
