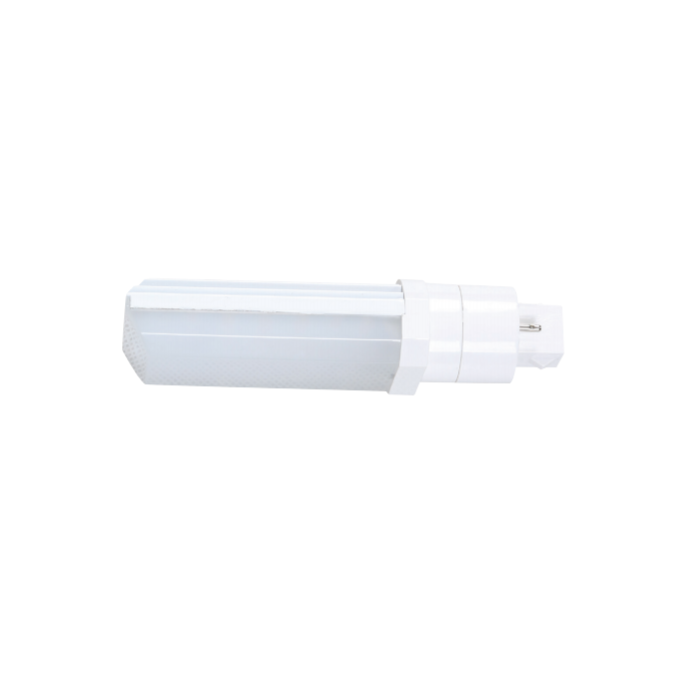

Keystone KT-LED82P-H-8xx-D 2-Pin LED PL Replaces 26W/32W/42W G24 Lamps

  • Buy 25 for $10.25 each and save 18%
  • Buy 75 for $9.95 each and save 20%
  • Premier# LPLxxK8WG24DHOR-K
  • Keystone Type B 8W 2-pin LED PL Horizontal

Keystone KT-LED82P-H-8xx-D 2-Pin LED Replaces 26W/32W/42W G24 Lamps

Keystone's Direct Drive Type B LED PL lamps are designed with an internal driver allowing for bypassing costly CFL ballasts. These 8W 2-Pin LED PL lamps are designed to replace 4-pin 26W/32W/42W CFL lamps with a G24d base. Simply cut the ballast out and connect the 120-277v line voltage directly to the sockets. No ballast or external LED is required. Horizontal orientation, also available in vertical orientation. Available in 2700K, 3000K, 3500K, 4000K and 5000K color temperatures.


Brochures & Cut Sheets

Keystone 2-Pin LED PL 8W Horizontal Orientation Keystone 8W 2-Pin Type B LED PL Spec Sheet

More Information
Manufacturer Keystone
Watts 8W
CFL Equivalent 26W/32W/42W
Lamp Type 2-Pin LED PL
Lumens 900-950
Lumens Per Watt 113-119
Volts 120-277V
CRI 83
Color Temperature 2700K-3000K-3500K-4000K-5000K
Dimmable No
Base Type G24d
Beam Angle 120°
Orientation Horizontal
Lens Type Frosted
Length (M.O.L.) Inches 5.6
Width (Inches) 1.22
Height (Inches) 1.61
Rated Hours 50,000
DLC Listed No
Wet/Damp Rated Damp Rated
Maximum Temp 113°F
Minimum Starting Temp -4°F
Certifications UL
Case Quantity 50
Warranty 5 Year
Manufacturer Part # KT-LED82P-H-8xx
Manufacturer Order # N/A
Premier Part # LPLxxK8WG24DHOR-K
