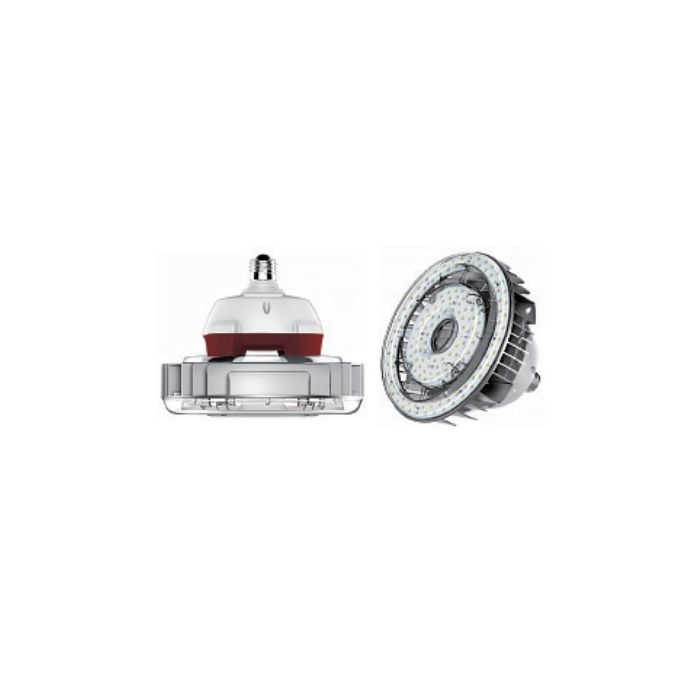

Keystone KT-LED80HID-V-E26-850-D Vertical LED HID E26 80W 5000K

  • Premier# LOC5080WE26/VERT-K
  • Keystone KT-LED80HID-V-E26-850-D 80W Direct Drive Vertical HID Replacement

Keystone KT-LED80HID-V-E26-850-D Vertical Base LED HID E26 Base 80W 5000K

Replace your high watt HID Downlights with Keystone's 80W or 115W Ballast Bypass Vertical-Base HID LED Replacement. At 80W, it delivers 8800+ lumens, allowing it to replace up to 250W HID downlights. Available in E26 standard base or E39 mogul base. Bypasses the existing ballast and wires direct to line voltage. Non-dimmable. Rated for 50,000 hours with a 5 year manufacturer warranty. Suitable for use in fully-enclosed fixtures. IP40 Rated.


Brochures & Cut Sheets

Keystone 80W LED HID Vertical Replacement 250W Keystone Direct Drive Vertical 80W LED HID Replacement Spec Sheet

More Information
Manufacturer Keystone
Watts 80W
HID Equivalent 250W
Lumens 9600
Lumens Per Watt 120
Volts 120-277V
CRI >80
Color Temperature 5000K
Dimmable No
Base Type E26
Length (M.O.L.) Inches 6.42
Diameter (Inches) 7.87
Beam Angle 180° Visible Light Area
Rated Hours 50,000
Energy Star Rated No
DLC Listed No
Wet/Damp Rated IP40
Rated for Enclosed Fixtures Yes
Maximum Temp 140°F
Minimum Starting Temp -40°F
Case Quantity 1
Warranty 5 Year
Manufacturer Part # KT-LED80HID-V-E26-850-D
Manufacturer Order # KT-LED80HID-V-E26-850-D
Premier Part # LOC5080WE26/VERT-K
Write your content here...
Back to Top

Keystone KT-LED80HID-V-E26-850-D Vertical LED HID E26 80W 5000K

$173.95
