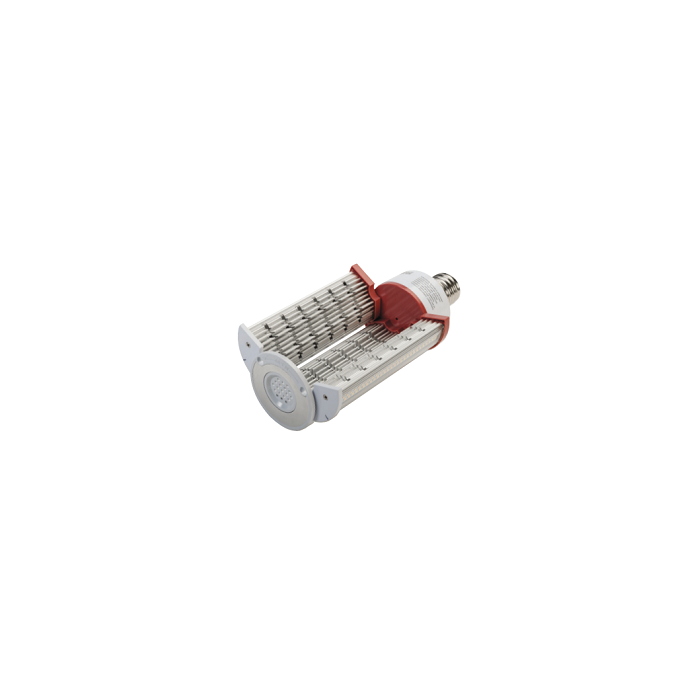

Keystone KT-LED63HID-H-EX39-830-D Xpander 180° LED HID Lamp 63W 3000K

  • Premier# LOC3063WEX39/HOR-K
  • Keystone KT-LED63HID-H-EX39-830-D 63W Direct Drive LED HID Replacement

Keystone Xpander KT-LED63HID-H-EX39-830-D - 250W HID Replacement

Keystone's new Xpander lamps feature technology never before seen in an LED lamp. Keystone took their LED Omni Cobs and gave them wings, allowing for a horizontal beam spread that works well in retrofitting wallpack fixtures where a 180° beam angle is needed. 63W LED replaces 250W HID. EX39 mogul base is rotatable to ensure the lamp is directed in the exact position that is needed. Ballast is bypassed for additional energy and long-term maintenance savings. All wattages are available in 3000K, 4000K or 5000K. IP64-rated; Integrated heat sink quickly dissipates heat and guides water intrusion out of the lamp.


Brochures & Cut Sheets

Keystone 63W LED HID Replacement 250W Keystone 63W Xpander LED HID Replacement Spec Sheet

More Information
Manufacturer Keystone
Watts 63W
HID Equivalent 250W
Lumens 8820
Lumens Per Watt 140
Volts 120-277V
CRI 80
Color Temperature 3000K
Dimmable No
Base Type EX39
Length (M.O.L.) Inches 10.23
Diameter (Inches) 3.23
Beam Angle 180° Visible Light Area
Rated Hours 50,000
Energy Star Rated No
DLC Listed Yes
Wet/Damp Rated IP64
Rated for Enclosed Fixtures Yes
Maximum Temp 113°F
Minimum Starting Temp -40°F
Case Quantity 1
Warranty 5 Year
Manufacturer Part # KT-LED63HID-H-EX39-830-D
Manufacturer Order # KT-LED63HID-H-EX39-830-D
Premier Part # LOC3063WEX39/HOR-K
