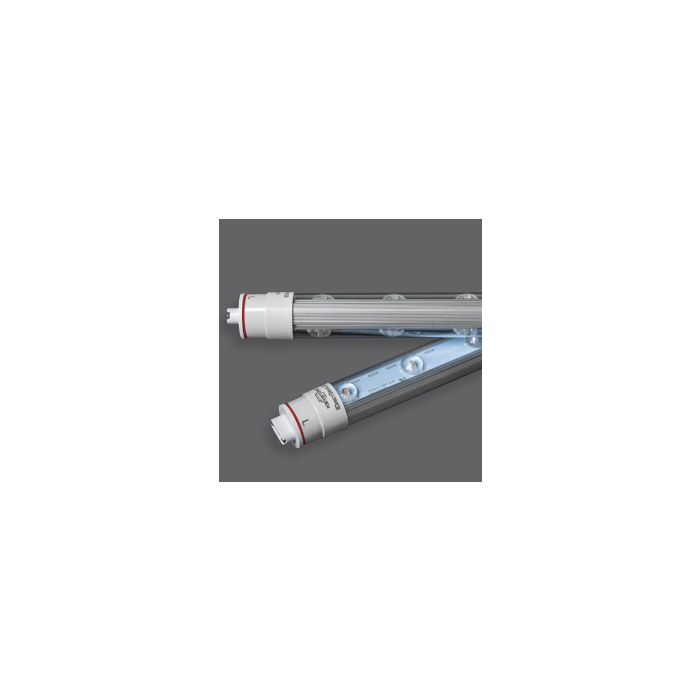

Keystone KT-LED42T8-96P2S-865-D 42W 96" LED Sign Hero Tube 4000K 6500K Case/9

Keystone KT-LED42T8-96P2S-865-D 42W 96" LED Sign Hero Tube 4000K 6500K Case/9

Be the first to review this product


Quick Overview

  • Keystone KT-LED42T8-96P2S-865-D 42W 96" 4000K-6500K LED Sign Tube

  • Must Order in Case Quantity of 9 for shipping purposes

* Required Fields



Keystone KT-LED42T8-96P2S-8xx-D - 42W 96" LED Sign Tube R17d Base

Finally there is a simple solution for retrofitting T12HO or T8HO fluorescent lamps to LED. Keystone's Sign Hero LED Tubes come with the same R17d rotatable base and are installed in less than 5 minutes! See the video below to see how easy the process is. Unlike other LED solutions, they do not require the use of an external driver or ballast, which saves time on install and removes a future failure point. Rated for 50,000 hours and backed by a 5 year manufacturer warranty from Keystone. Full lighting coverage with a 360° beam spread, delivering even lighting with no hot-spotting for a single-sided or double-sided sign application. Installs using existing sockets in the sign; all necessary wiring can be done within the ballast raceway. Available in 4000K (Cool White) or 6500K (Daylight+) color temperatures. Listed in the UL Sam Manual. UL Classified: LED Sign Retrofit, Evaluated to UL 48 / UL 879A Standards. Operating Temperature of -4°F to 131°F. Available in several different lengths - 18", 24", 30", 36", 42", 48", 60", 72", 84", 96", 108" and 120". Retrofit your fluorescent signs today in 5 minutes and begin saving over 50% on energy with long lasting LED! 8', 9' and 10' must be ordered in case quantities of 9 for shipping purposes.

Brochures & Cut Sheets

Keystone 96 Keystone 360° Sign Hero 96" LED Tube Spec Sheet

Additional Information

Watts 42W
Fluorescent Equivalent 110W
Old LED Version No
Lumens 5100/5300
Lumens Per Watt 121/126
Volts 120-277V
CRI >80
Color Temperature 4000K/6500K
Dimmable No
Base Type R17d
Wiring No
Clear/Frosted Lens Clear
Construction Coated Glass
Length (M.O.L.) Inches 93.91
Width (Inches) 1.1
Height (Inches) N/A
Beam Angle 360°
Light Emitting Area 360°
Driver Internal
Rated Hours 50,000
DLC Listed No
Wet/Damp Rated N/A
Maximum Temp 131°F
Minimum Starting Temp -4°F
Certifications UL Sam
Case Quantity 10
Warranty 5 Year
Manufacturer Keystone
Manufacturer Part # KT-LED42T8-96P2S-8xx-D
Manufacturer Order # No
Premier Part # KT-LED42T8-96P2S-8xx-D
