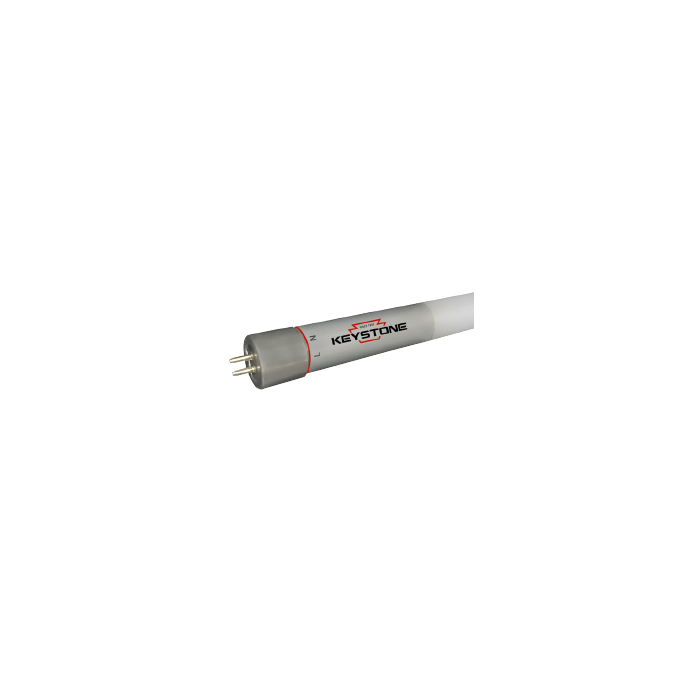

Keystone KT-LED25T5HO-48GC-835-DX2 Direct Drive 4' 25W LED T5 Tube 3500K
- Buy 12 for $15.95 each and save 11%
- Buy 25 for $11.50 each and save 36%
- Premier# LT535K25W-K
- Keystone KT-LED25T5HO-48GC-835-DX2
Keystone KT-LED25T5HO-48GC-835-DX2 Direct Drive 4' 25W LED T5 Tube 3500K
The search for a ballast bypass LED T5 is over. You can now replace your conventional linear fluorescent T5 lamps with LED T5 tubes that bypass the ballast and wire direct. This saves more energy as well as reduces excess heat and interference caused by ballasts. New version of lamp can be single or double-end wired! Operates on 277V and delivers 3300 lumens on just 25W. 50,000 hours with a 5 year manufacturer warranty. Coated glass design results in an NSF rating for food equipment applications. Available in rare 6500K version in limited quantities. Old version is KT-LED25T5HO-48GC-835-D/G2.
Brochures & Cut Sheets
| Manufacturer | Keystone |
|---|---|
| Watts | 25W |
| Fluorescent Equivalent | 54W HO |
| Old LED Version | N/A |
| Lumens | 3400 |
| Lumens Per Watt | 136 |
| Volts | 277V |
| CRI | 80+ |
| Color Temperature | 3500K |
| Kelvin | 3500K |
| Dimmable | No |
| Base Type | G5 Miniature Bi-Pin |
| Bulb Shape | T5 |
| Wiring | Single/Double-Ended |
| Lens Type | Frosted |
| Construction | Coated Glass |
| Nominal Size | 48" |
| Length (M.O.L.) Inches | 45.19 |
| Width (Inches) | 0.82 |
| Height (Inches) | N/A |
| Beam Angle | 240° |
| Light Emitting Area | 325° |
| Driver | Internal Driver |
| Rated Hours | 50,000 |
| DLC Listed | Yes |
| Wet/Damp Rated | Damp Rated |
| Maximum Temp | 113°F |
| Minimum Starting Temp | -4°F |
| Certifications | NSF/UL |
| Case Quantity | 25 |
| Warranty | 5 Year |
| Manufacturer Part # | KT-LED25T5HO-48GC-835-DX2 |
| Manufacturer Order # | N/A |
| Premier Part # | LT535K25W-K |
