Keystone KT-LED14T8-48G-840-X2 4' 14W 4000K Combo Drive 2 Double-Ended
- Buy 25 for $11.50 each and save 28%
- Premier# LT840K14WCOMBO-K

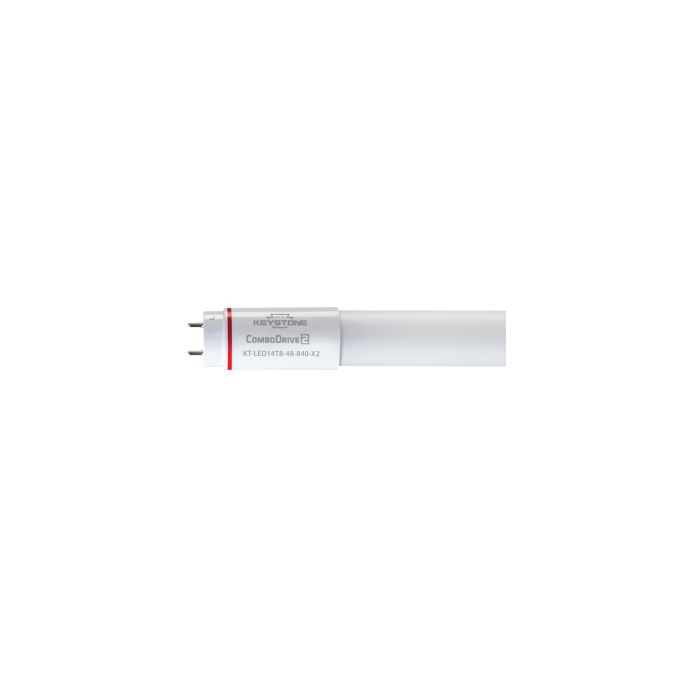

- Keystone KT-LED14T8-48G-840-X2 - 4' ComboDrive 2
Keystone KT-LED14T8-48G-840-X2 - Plug & Play or Double-Ended Line Voltage Install
Keystone's new ComboDrive2 LED T8 tube still allows for plug & play install but also features double-ended line voltage install for added convenience. Compatible with most Instant & Programmed Start Electronic T8 Ballasts - see below for ballast compatibility sheet. Once the ballast dies, the ComboDrive 2 can bypass the ballast and wire direct to 120-277V line voltage (double-ended install). At 14W, it has an initial lumen count of 1625-1700. Wattage and lumens will vary if used with existing ballast. Available in 3500K, 4000K or 5000K color temps.
Brochures & Cut Sheets
| Manufacturer | Keystone |
|---|---|
| Watts | 14W |
| Fluorescent Equivalent | 32W |
| Old LED Version | N/A |
| Lumens | 1650 |
| Lumens Per Watt | 117 |
| Volts | 120-277V |
| CRI | >80 |
| Color Temperature | 4000K |
| Kelvin | 4000K |
| Dimmable | No |
| Base Type | G13 Bi-Pin |
| Bulb Shape | T8 |
| Wiring | Single/Double-Ended |
| Lens Type | Frosted |
| Construction | Glass |
| Nominal Size | 48" |
| Length (M.O.L.) Inches | 47.15 |
| Width (Inches) | 1.10 |
| Height (Inches) | N/A |
| Beam Angle | 220° |
| Light Emitting Area | 325° |
| Driver | Internal/Uses Ballast |
| Rated Hours | 50,000 |
| DLC Listed | Yes |
| Wet/Damp Rated | Dry Rated |
| Maximum Temp | 113° |
| Minimum Starting Temp | -4° |
| Certifications | UL |
| Case Quantity | 20 |
| Warranty | 5 Year |
| Manufacturer Part # | KT-LED14T8-48G-840-X2 |
| Manufacturer Order # | KT-LED14T8-48G-840-X2 |
| Premier Part # | LT840K14WCOMBO-K |
