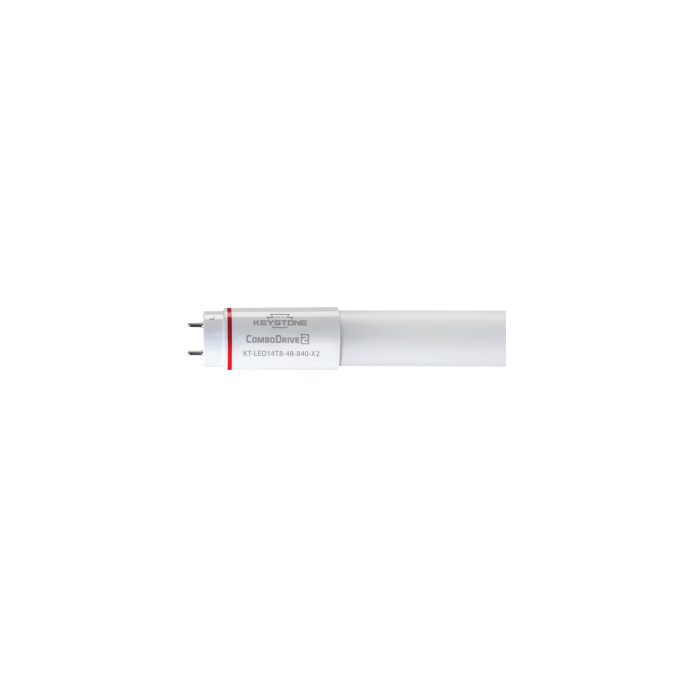

Keystone KT-LED14T8-48G-835-X2 4' 14W 3500K Combo Drive 2 Double-Ended
- Buy 25 for $11.50 each and save 28%
- Premier# LT835K14WCOMBO-K
- Keystone KT-LED14T8-48G-835-X2 - 4' ComboDrive 2
Keystone KT-LED14T8-48G-835-X2 - Plug & Play or Double-Ended Line Voltage Install
Keystone's new ComboDrive2 LED T8 tube still allows for plug & play install but also features double-ended line voltage install for added convenience. Compatible with most Instant & Programmed Start Electronic T8 Ballasts - see below for ballast compatibility sheet. Once the ballast dies, the ComboDrive 2 can bypass the ballast and wire direct to 120-277V line voltage (double-ended install). At 14W, it has an initial lumen count of 1625-1700. Wattage and lumens will vary if used with existing ballast. Available in 3500K, 4000K or 5000K color temps.
Brochures & Cut Sheets
Manufacturer | Keystone |
---|---|
Watts | 14W |
Fluorescent Equivalent | 32W |
Old LED Version | N/A |
Lumens | 1625 |
Lumens Per Watt | 116.08 |
Volts | 120-277V |
CRI | >80 |
Color Temperature | 3500K |
Dimmable | No |
Base Type | G13 Bi-Pin |
Lens Type | Frosted |
Construction | Glass |
Length (M.O.L.) Inches | 47.15 |
Width (Inches) | 1.10 |
Height (Inches) | N/A |
Beam Angle | 220° |
Light Emitting Area | 325° |
Driver | Internal/Uses Ballast |
Rated Hours | 50,000 |
DLC Listed | Pending |
Wet/Damp Rated | Dry Rated |
Maximum Temp | 113° |
Minimum Starting Temp | -4° |
Certifications | UL |
Case Quantity | 20 |
Warranty | 5 Year |
Manufacturer Part # | KT-LED14T8-48G-835-X2 |
Manufacturer Order # | KT-LED14T8-48G-835-X2 |
Premier Part # | LT835K14WCOMBO-K |
