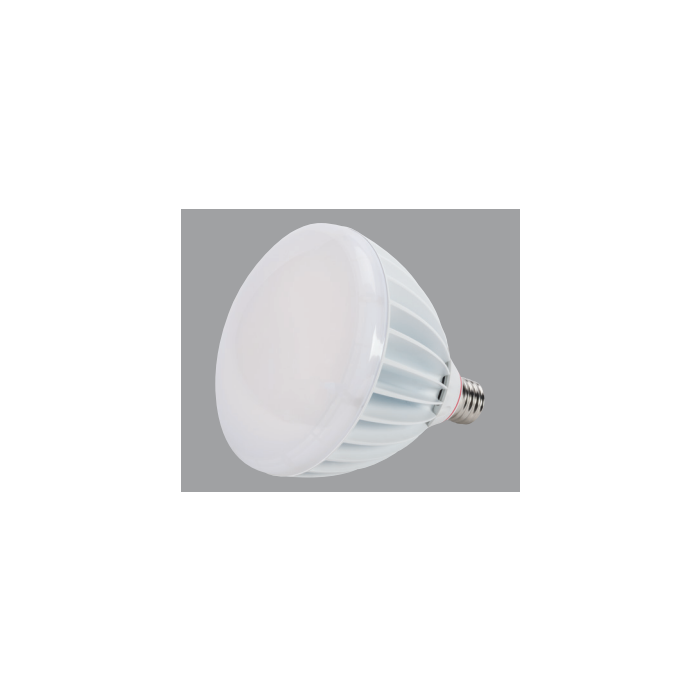

Keystone KT-LED130HID-V-EX39-840-S 130W LED Vertical 400W HID Replacement 4000K

  • Premier# NLED0602
  • Keystone KT-LED130HID-V-EX39-840-S 130W Smart Drive LED HID Replacement
  • Replaces 400W Metal Halide Lamps by using existing ballast

Keystone KT-LED130HID-V-EX39-840-S - Ballast Compatible LED Replacement for 400W HID

Keystone's SmartDrive HID Replacement LED lamps allow for easy upgrades to your existing HID fixtures. No rewiring needed as these are plug and play, working on the existing magnetic ballast. Designed to retrofit 400W Metal Halide lamps by working on the following HID ballasts with ANSI Codes: M59/M132/M135/M154/M155. Suitable for dry or damp locations, and rated for enclosed fixtures. Install only in vertical, base-up orientation. Lower wattage draw from lamp relative to the HID lamp allows for longer ballast life. When retrofitted, existing fixture changes from a Lagging (Inductive) Power Factor Source to a Leading (Capacitive) Power Factor Source; this change means the building's overall electric power factor may be improved. Does not work on Reactor or Electronic Ballasts. Lamp includes Safety Tether for additional security when installing lamp in luminaire.


Brochures & Cut Sheets

Keystone 130W LED Ballast Compatible HID Replacement 400W Keystone 130W LED Ballast Compatible HID Replacement Spec Sheet

More Information
Manufacturer Keystone
Watts 130W
HID Equivalent 400W
Lumens 10,700-12,600
Lumens Per Watt 82.31-96.93
Volts Ballast Dependent
CRI 80
Color Temperature 4000K
Dimmable No
Base Type EX39
Length (M.O.L.) Inches 9.27
Diameter (Inches) 7.87
Beam Angle N/A
Rated Hours 50,000
Energy Star Rated No
Wet/Damp Rated Damp Rated
Rated for Enclosed Fixtures Yes
Maximum Temp 85°F
Minimum Starting Temp -40°F
Case Quantity 1
Warranty 5 Year
Manufacturer Part # KT-LED130HID-V-EX39-840-S
Manufacturer Order # KT-LED130HID-V-EX39-840-S
Premier Part # NLED0602
Write your content here...
Back to Top

Keystone KT-LED130HID-V-EX39-840-S 130W LED Replace 400W HID 4000K

$189.95
