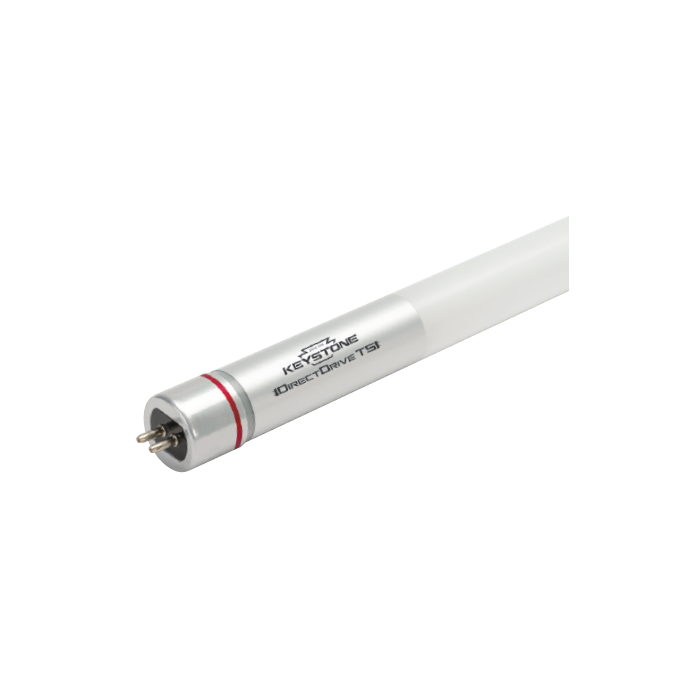

Keystone KT-LED12T5HO-24GC-840-DX2 Direct Drive 2' 12W LED T5 Tube 4000K

  • Buy 25 for $11.50 each and save 28%
  • Premier# LT52FT40K12W-K
  • Keystone KT-LED12T5HO-24GC-840-DX2

Keystone KT-LED12T5HO-24GC-840-DX2 Direct Drive 2' 12W LED T5 Tube 4000K

The search for a ballast bypass LED T5 is over. You can now replace your conventional linear fluorescent T5 lamps with LED T5 tubes that bypass the ballast and wire direct. This saves more energy as well as reduces excess heat and interference caused by ballasts. Operates on 120-277V and delivers 1900 lumens on just 16W. Now available in DX2 style which allows for single-end or double-end wiring. 50,000 hours with a 5 year manufacturer warranty. Coated glass design results in an NSF rating for food equipment applications. Previous part# is KT-LED12T5HO-24GC-840-D.


Brochures & Cut Sheets

Keystone Type B LED T5s Keystone Type B 2' LED T5 Info Sheet

More Information
Manufacturer Keystone
Watts 12W
Fluorescent Equivalent 24W HO
Old LED Version KT-LED12T5HO-24GC-840-D
Lumens 1600
Lumens Per Watt 133
Volts 120-277V
CRI 80+
Color Temperature 4000K
Dimmable No
Base Type G5 Miniature Bi-Pin
Wiring Single/Double-Ended
Lens Type Frosted
Construction Coated Glass
Length (M.O.L.) Inches 21.56
Width (Inches) 0.82
Height (Inches) N/A
Beam Angle 240°
Light Emitting Area 325°
Driver Internal Driver
Rated Hours 50,000
DLC Listed No
Wet/Damp Rated Damp Rated
Maximum Temp 113°F
Minimum Starting Temp -4°F
Certifications NSF/UL
Case Quantity 25
Warranty 5 Year
Manufacturer Part # KT-LED12T5HO-24GC-840-DX2
Premier Part # LT52FT40K12W-K
