Keystone KT-HBLED175-2F-8xx-VDIM-P 2' LED Highbay Fixture 175W

Keystone KT-HBLED175-2F-8xx-VDIM-P 2' LED Highbay Fixture 175W

Be the first to review this product

$194.95

Quick Overview


  • Keystone KT-HBLED175-2F-8xx-VDIM-P

* Required Fields

$194.95

Details

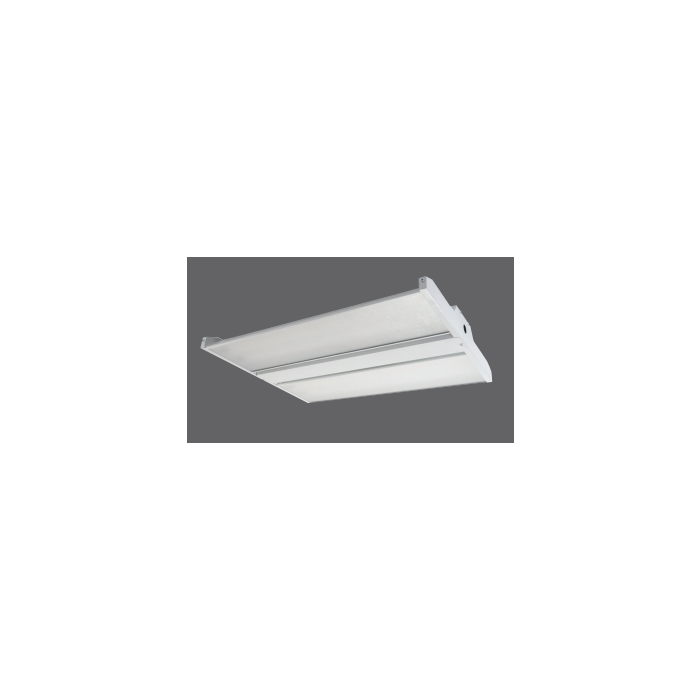

Keystone KT-HBLED175-2F-8xx-VDIM-P 2' LED Highbay Fixture 175W

Keystone's Compact LED Highbay Fixtures are designed for use in commercial and industrial high bay applications, from warehouses to garages. Frosted lens to eliminate glare. Available in various lumen packages, from 90W 11,800 lumens all the way up to 215W 28,200 lumens. Powered by Keystone 0-10V Dimming LED Drivers. V-hook & Chain Mounting Accessories included. Compatible with Keystone SmartSafe Emergency LED Drivers and Keystone 480-277V Step Down Transformers. Suitable for dry and damp locations. Power factor > 0.95.


Brochures & Cut Sheets

Keystone 2' LED High Bay Fixture Keystone 2' LED Highbay Spec Sheet

Additional Information

Volts 120-277V
HID Equivalent 400W
Fluorescent Equivalent N/A
Watts 175W
Lumens 23,000-23,100
Lumens Per Watt 131+
CRI >82
Color Temperature 4000K/5000K
Dimmable 0-10V
Distribution N/A
Length (M.O.L.) Inches 24.4
Height (Inches) 2.4
Width (Inches) 15
Wet/Damp Rated Damp Rated
Maximum Temp 122ºF
Rated Hours 100,000
Warranty 5 Year
Manufacturer Keystone
Manufacturer Order # KT-HBLED175-2F-8xx-VDIM-P
Premier Part # KT-HBLED175-2F-8xx-VDIM-P
