Keystone KT-HBLED135-2F-8xx-VDIM-P 2' LED Highbay Fixture 135W

  • Buy 4 for $179.95 each and save 9%
  • Buy 12 for $163.95 each and save 17%
  • Keystone KT-HBLED135-2F-8xx-VDIM-P

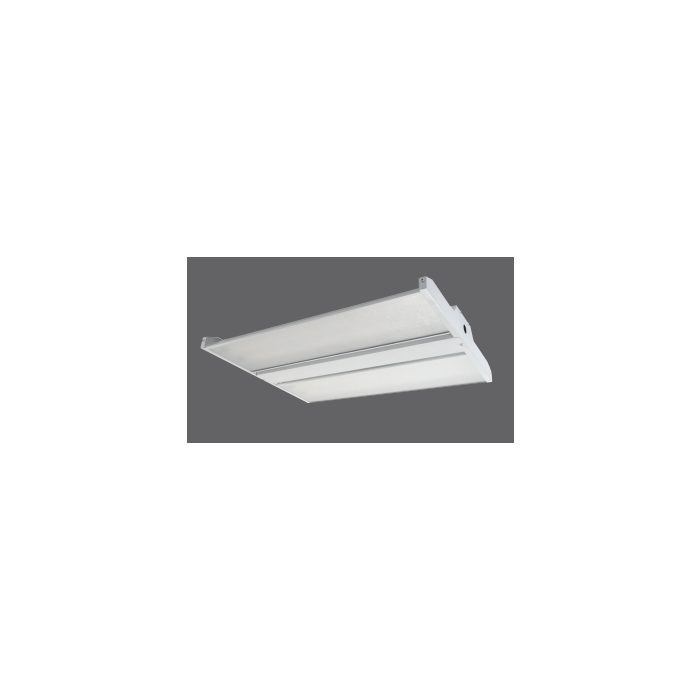

Keystone KT-HBLED135-2F-8xx-VDIM-P 2' LED Highbay Fixture 135W

Keystone's Compact LED Highbay Fixtures are designed for use in commercial and industrial high bay applications, from warehouses to garages. Frosted lens to eliminate glare. Available in various lumen packages, from 90W 11,800 lumens all the way up to 215W 28,200 lumens. Powered by Keystone 0-10V Dimming LED Drivers. V-hook & Chain Mounting Accessories included. Compatible with Keystone SmartSafe Emergency LED Drivers and Keystone 480-277V Step Down Transformers. Suitable for dry and damp locations. Power factor > 0.95.


Brochures & Cut Sheets

Keystone 2' LED High Bay Fixture Keystone 2' LED Highbay Spec Sheet

More Information
Manufacturer Keystone
Volts 120-277V
HID Equivalent 320W
Watts 135W
Lumens 17,600-17,700
Lumens Per Watt 131+
CRI >82
Color Temperature 4000K/5000K
Dimmable 0-10V
Distribution N/A
Length (M.O.L.) Inches 24.4
Height (Inches) 2.4
Width (Inches) 15
Wet/Damp Rated Damp Rated
Maximum Temp 122ºF
Rated Hours 100,000
Warranty 5 Year
Manufacturer Order # KT-HBLED135-2F-8xx-VDIM-P
Premier Part # LLHB2FTxxK135W-K
