GE Lumination LRX Round Series 8" LED Retrofit Downlight 0-10V Dimming

GE Lumination LRX Round Series 8" LED Retrofit Downlight 0-10V Dimming

Be the first to review this product


Quick Overview

  • GE LRX Series LED Downlights

  • 8" Round 3000K-4000K Adjustable Lumen Packages

* Required Fields

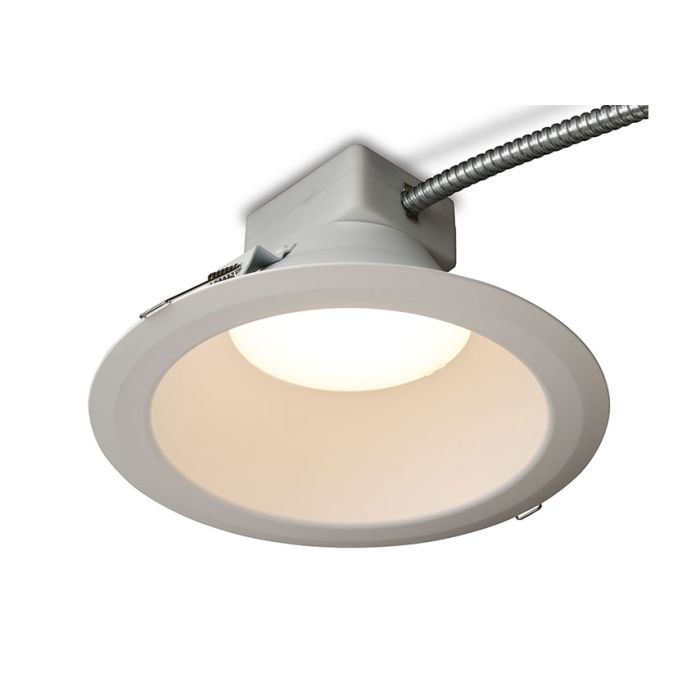

GE Lumination LRX Round Series 8" LED Recessed Can Downlights

GE's Lumination LRX LED Downlights Series replaces the old RX LED Downlights from GE. These LED luminaires are the best choice for retrofitting traditional downlight fixtures. Simple install for most 6-inch or 8-inch frames (Goof Ring optional adder). Favored over LED PL lamps due to having their own power supply, fresh look, and being able to bypass the existing fluorescent PL ballast for long term maintenance savings. 120-277V universal voltage (347V Transformer Kit available). 1000 lumen version allows for manually switching between full power (1000 lumens) and low power (650 lumens) with a switch of a button on the fixture. 8" LRX Downlight also available in 1800 lumen version and 3000 lumen version.

Brochures & Cut Sheets

GE LRX 6 GE LRX Series LED Downlights Info Sheet

Additional Information

Watts 8.5W-13W-22W-35W
Base Type Direct
Incandescent Equivalent N/A
CFL Equivalent N/A
Lumens 650-1000-1800-3000
Lumens Per Watt 88-94
Recessed Housing 6"
Volts 120-277V (347V transformer available)
Color Temperature 3000K-3500K-4000K
Beam Angle N/A
CRI 82
R9 N/A
Dimmable 0-10V
Power Factor >0.9
DLC Listed No
Energy Star Rated N/A
Wet/Damp Rated Wet Rated
Diameter (Inches) 9.75
Length (M.O.L.) Inches 5.1
Rated Hours 50,000
Warranty 5 Year
Case Quantity 6
Manufacturer GE
Manufacturer Order # LRXR8xx8xxMD
Manufacturer Part # LRXR8xx8xxMD
Premier Part # No
