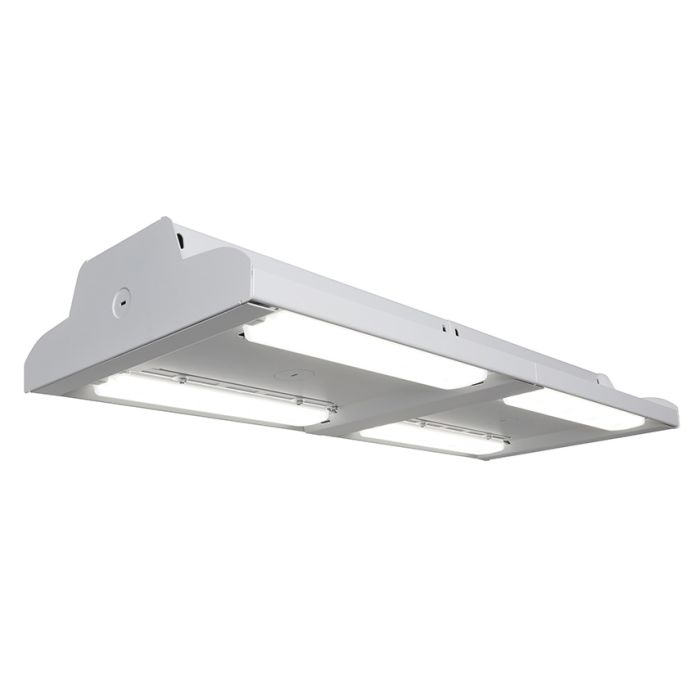

GE Albeo LED Highbay ABV Series Double Module
- GE Albeo LED Highbay ABV Series - Double Module
GE Albeo LED Highbay ABV Series Double Module
The GE Albeo ABV Series continues where the ABH Series left off in terms of combining value and performance. Designed to meet or exceed illuminance requirements for high bay or low bay applications. Steel/aluminum housing. ABV-series design accommodates 1 or 2 LED modules with 2 LED strips per module. ABV-series lens system enable LEDs to provide optimized illumination for open floor and racked aisles with photometric distributions of 55, 90, and 120 degrees (as well as 120 degrees with diffused lens). Double Module ABV Series has two lumen levels - Standard (18,000+ lumens) or Very High Output (24,000+ lumens). 120/277V standard, 347V-477V available as well. Various mounting options available.
Brochures & Cut Sheets
Volts | 120-277V (347V-488V option) |
---|---|
HID Equivalent | Up to 1000W |
Watts | 134W-204W |
Lumens | 18,000-24,620 |
Lumens Per Watt | 121-137 |
CRI | 70+ |
Color Temperature | 4000K-5000K |
Dimmable | No |
Distribution | 55°-120° |
Finish | N/A |
Length (M.O.L.) Inches | 30.06 |
Height (Inches) | 3.05 |
Width (Inches) | 11.625 |
Wet/Damp Rated | Damp Rated |
Maximum Temp | 55°C |
Rated Hours | 70,000-100,000 |
Warranty | 5 Year |
Manufacturer Part # | N/A |
Manufacturer Order # | ABVx2xxxxV |
