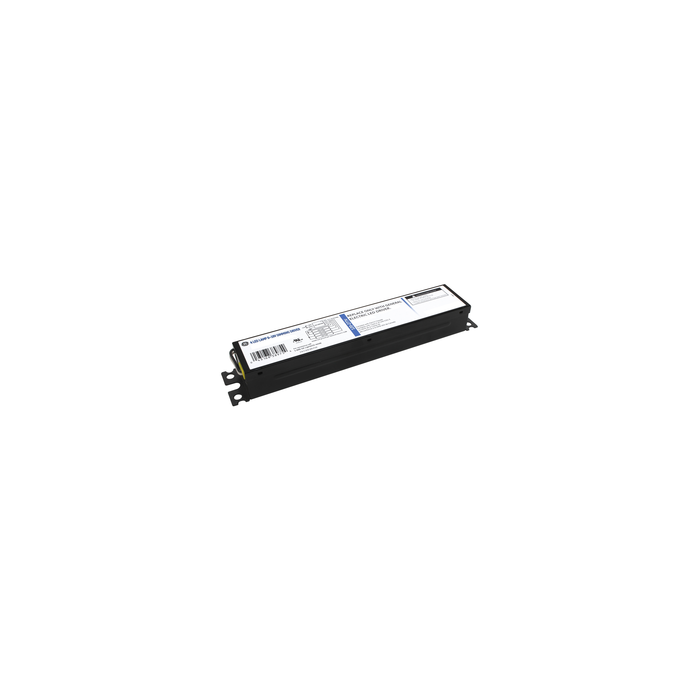

GE 76318 LED12T8/DR/D4L Lightech 4-Lamp Dimming Driver Type C LED T8 T5 Case/10

GE 76318 LED12T8/DR/D4L Lightech 4-Lamp Dimming Driver Type C LED T8 T5 Case/10

Be the first to review this product

$269.95
OR

Quick Overview


  • GE 76318 LED12T8/DR/D4L Case/10/strong>

Details

GE 76318 LED12T8/DR/D4L Lightech 4-Lamp Dimming Driver Type C LED T8 T5

GE Lightech External Dimming Driver for GE LED12T8 series - 10W 4' Type C LED T8, 2' Type C LED T5 lamps or two GE 6" Leg Spacing Type C LED Ubends. GE 38974 operates two 2' LED T5 lamps and is capable of functioning with a 0-10V dimmer to allow for dimming with the Type C LED T5 lamps.


Brochures & Cut Sheets

GE Type C LED T5 Lamps GE Type C LED Info Sheet

Additional Information

Volts 120-277V
Input Current Max N/A
Input Power Max 48
Input Frequency 50/60Hz
Max. Current N/A
Power Factor >0.9
THD Max N/A
Output Current 0.21*4
Output Voltage 27-33V
Output Power N/A
Efficiency >.9%
Case Style N/A
Dimmable 0-10V
Length (M.O.L.) Inches 9.5
Width (Inches) 1.7
Height (Inches) 1.25
Maximum Temp 113°F
Minimum Starting Temp -4°F
Wet/Damp Rated Damp Rated
Certifications UL
Warranty 5 Year
Manufacturer GE
Manufacturer Part # LED12T8/DR/D4L
Manufacturer Order # 76318
Premier Part # 76318
