***DISCONTINUED*** GE 38975 LED15T8/DR/D4L Lightech 4-Lamp Dimming Driver Type C LED 10/Case
- ***DISCONTINUED*** GE 38975 LED15T8/DR/D4L

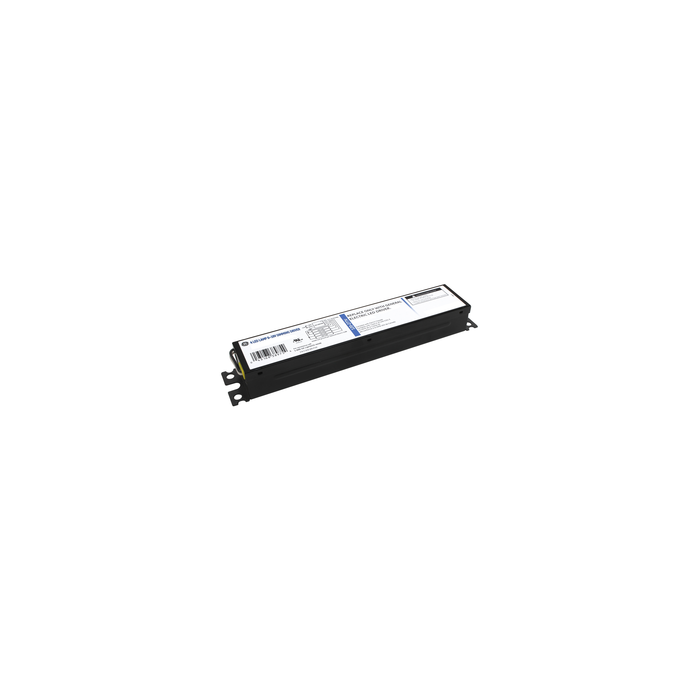

GE 38975 LED15T8/DR/D4L Lightech 4-Lamp Dimming Driver Type C LED T8 T5
GE Lightech External Dimming Driver for GE 4' Type C 13W and 2' Type C LED T5 lamps. GE 38975 operates four 2' LED T5 lamps and is capable of functioning with a 0-10V dimmer to allow for dimming with the Type C LED T5 lamps.
Brochures & Cut Sheets
Volts | 120-277V |
---|---|
Input Current Max | 0.42A @ 120V |
Input Power Max | 60 |
Input Frequency | 50/60Hz |
Max. Current | N/A |
Power Factor | >0.9 |
THD Max | N/A |
Output Current | 0.44*4 |
Output Voltage | 27-33V |
Output Power | N/A |
Efficiency | >.9% |
Case Style | N/A |
Dimmable | 0-10V |
Length (M.O.L.) Inches | 9.5 |
Width (Inches) | 1.7 |
Height (Inches) | 1.25 |
Maximum Temp | 104°F |
Minimum Starting Temp | -4°F |
Wet/Damp Rated | Damp Rated |
Certifications | UL |
Warranty | 5 Year |
Manufacturer Part # | LED15T8/DR/D4L |
Manufacturer Order # | 38975 |
Premier Part # | NSB0177 |
