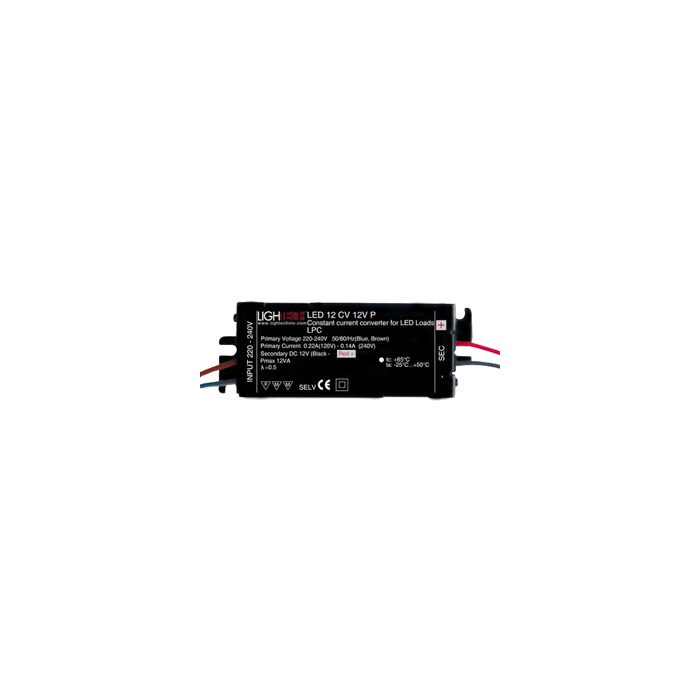

GE 28174 LED14T8/DR/D3L Type C Lightech Driver for LED U-Tube Retrofits - 1/Ea

GE 28174 LED14T8/DR/D3L Type C Lightech Driver for LED U-Tube Retrofits - 1/Ea

Be the first to review this product

$28.95
OR

Quick Overview


  • GE 1-5/8" Type C LED U-Tube External Driver - 1/Ea

  • 3 Lamp Maximum - 60,000 Hours - Requires 0-10V dimmer for dimming functionality

Details

GE LED Remote External Driver 28174 LED14T8/DR/D3L

Convert your existing linear fluorescent Ubend fixtures to LED lighting without a comprehensive reinstall. Type C LED tubes from GE run on an external GE Lightech remote driver which allows for superior efficiency as well as smooth dimming (with a 0-10V dimmer). Shatter resistant. Remote driver only. Requires GE LED U-Tube lamps as well as 0-10V dimmer if dimming functionality is needed.

  • Maximum 3 lamps
  • Output Current (A): 0.43*3
  • Input Watt Range (W): 14
  • Input Voltage (V): 120-277V
  • Input Frequency (Hz): 50/60Hz
  • Efficiency (%): >.9%
  • Output Type: DC
  • Output Voltage Range: 27-33V
  • Dimmability: 0-10V
  • Ambient Temp Min: -4°F
  • Ambient Temp Max: 104°F
  • Case Temperature: 158°F
  • Driver Rating: >60,000 hours
  • Casing Height (in): 1
  • Lead Exit Length (in): 26
  • Input Wire Length (in): 36
  • Output Wire Length (in): 38
  • Manufacturer #: GE LED14T8/DR/D3L
  • Manufacturer Order#: GE 28174

Brochures & Cut Sheets

GE LED Type C UTube GE Type C LED U-Tube Info Sheet
