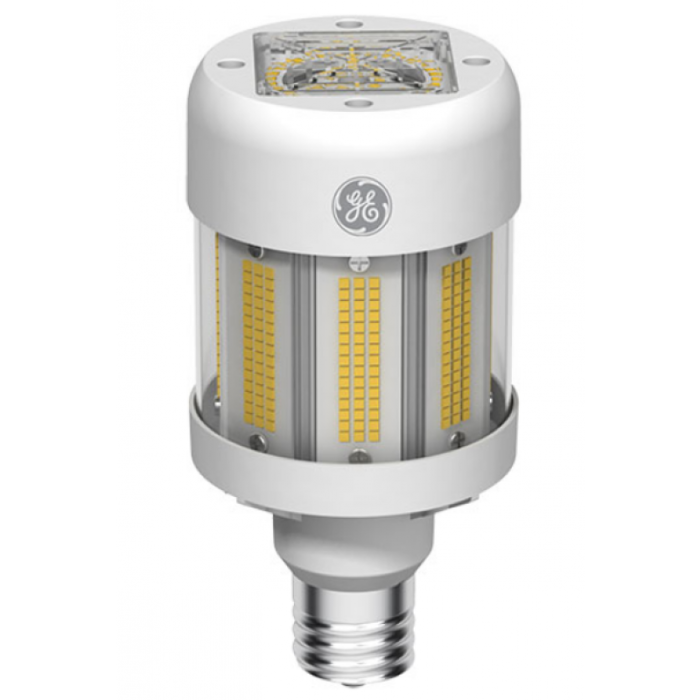

GE LED80ED23.5M/740 22768 80W LED 175W HID Replacement 4000K E26

  • Buy 6 for $135.95 each and save 9%
  • Buy 24 for $122.95 each and save 18%
  • Premier# NLED0764
  • GE 22768 LED80ED23.5M/740

GE LED80ED23.5M/740 22768 80W LED 175W HID Replacement 4000K E26

There are several Type B (ballast bypass) HID LED replacements, but GE's is unique for a couple of reasons. For one, it is the most efficient out there with lumens per watt ratios of 150+. The biggest factor is that GE designed these lamps to be the same size and form factor of their metal halide/high pressure sodium counterparts. Other LED brands provide lamps that are often times too big to fit within the same fixture. Rated for 50,000 hours with a 5 year manufacturer warranty. Rated for open or enclosed fixtures. Damp rated. Available in 4000K and 5000K. Lower watt options available in E26 base and E39 base. Tether kit and in-line fuse included which provides 6 kV surge protection. Must be ordered in cases of 3.


Brochures & Cut Sheets

GE Type B HID LED Replacement spec sheet GE Type B LED HID Replacement Spec Sheet

More Information
Manufacturer GE
Watts 80W
HID Equivalent 175W
Lumens 12,000
Lumens Per Watt 150
Volts 120-277V
CRI 70
Color Temperature 4000K
Kelvin 4000K
Dimmable No
Base Type E26
Bulb Shape ED23
Length (M.O.L.) Inches 7.7
Diameter (Inches) 3.6
Beam Angle N/A
Rated Hours 50,000
Energy Star Rated No
DLC Listed No
Wet/Damp Rated Damp Rated
Rated for Enclosed Fixtures Yes
Maximum Temp 50°C
Minimum Starting Temp -20°C
Case Quantity 3
Warranty 5 Year
Manufacturer Part # LED80ED23.5M/740
Manufacturer Order # 22768
Premier Part # NLED0764
Write your content here...
Back to Top

GE LED80ED23.5M/740 22768 80W LED 175W HID Replacement E26 Base 4000K

$149.95
