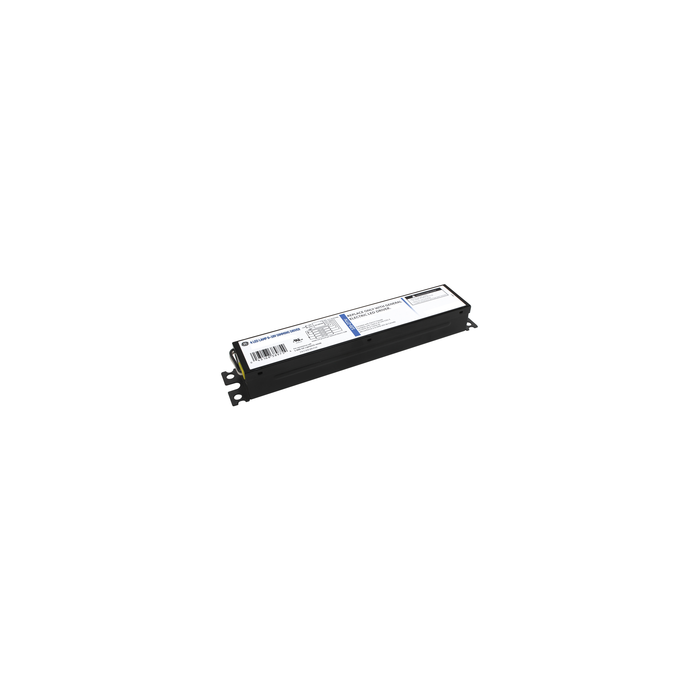

GE 21392 LED/DR/D4L/HW High Watt LumenChoice 4-Lamp LED Type C Driver - 10/Case
- Premier# NLED0882 - GE 21392 LED/DR/D4L/HW
GE 21392 LED/DR/D4L/HW High Watt LumenChoice 4-Lamp LED Type C Driver - 10/Case
The GE LumenChoice Type C LED T8 system has shaken up the LED linear market. Not sure what wattage/lumen package you want? Just get GE's LumenChoice LED T8 tubes and drivers and change the light output of the lamps on the field. This drastically reduces inventory and stock numbers in addition to giving customers the flexibility to make changes as they see fit. GE's LumenChoice LED Drivers come in 2-lamp and 4-lamp configurations, and low-watt and high-watt options. The low-watt drivers can power a GE 4' Type C LED T8 at 8W, 9W, 12W, 15W or 16.5W, while the high-watt drivers can power the same 4' Type C LED T8 lamps from 18W, 19.5W 21W, 23W all the way up to 25W. All drivers allow for 0-10v dimming functionality when used in conjunction with a 0-10V dimming driver.
Brochures & Cut Sheets
Volts | 120-277V |
---|---|
Input Current Max | N/A |
Input Power Max | N/A |
Input Frequency | 50/60Hz |
Max. Current | N/A |
Power Factor | >0.9 |
THD Max | N/A |
Output Current | 0.62*4 |
Output Voltage | 26-34V |
Output Power | N/A |
Efficiency | >.9% |
Case Style | N/A |
Dimmable | 0-10V |
Length (M.O.L.) Inches | 9.5 |
Width (Inches) | 1.3 |
Height (Inches) | 1.25 |
Maximum Temp | 104°F |
Minimum Starting Temp | -4°F |
Wet/Damp Rated | Damp Rated |
Certifications | UL |
Warranty | 7 Year |
Manufacturer Part # | LED/DR/D4L/HW |
Manufacturer Order # | 21392 |
Premier Part # | NLED0882 |
