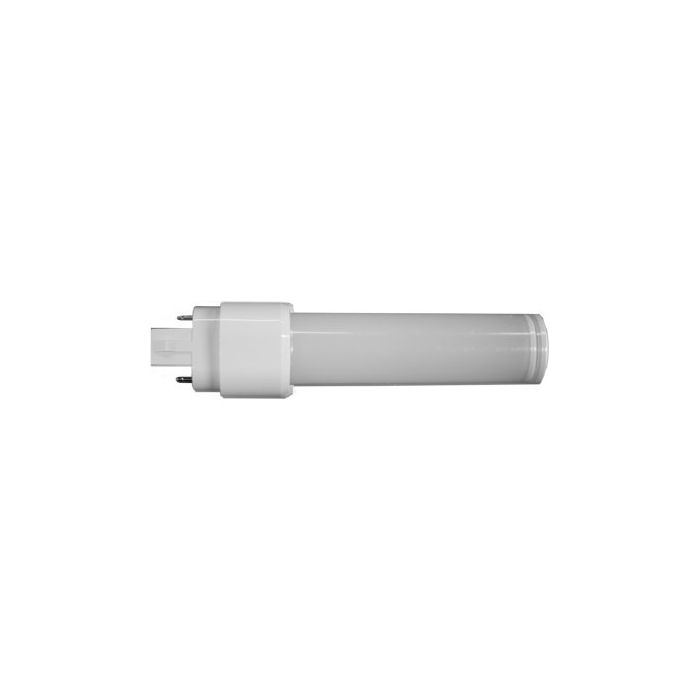

Eiko 09531 LED7W2PH/GX23/835-G7 7W 2-Pin LED PL Uses Magnetic Ballast
- Premier# LPL35K7WHOR/B-E
- Eiko 09531 LED7W2PH/GX23/835 - 7W Type A Horizontal LED PL
Eiko 09531 LED7W2PH/GX23/835-G7 7W 2-Pin LED PL Uses Magnetic Ballast
Replace your 2-pin G23/GX23 CFL lamps simply with Eiko's 5W LED PL that runs on the existing magnetic ballast. No re-wiring necessary. Requires a CFL ballast to operate, but on average will last 5x as long as a CFL. Horizontal orientation - also available in vertical. Base rotates for precise orientation once installed. Shatter-resistant for reduced risk of injury or breakage. Instant-on, no warm-up necessary unlike CFLs. Environmentally friendly - contains no glass, mercury or lead. This product works on many magnetic ballasts but we always advise getting your ballast part number and checking with Eiko to ensure it will work on your existing ballast..
Brochures & Cut Sheets
| Manufacturer | Eiko |
|---|---|
| Watts | 7W |
| CFL Equivalent | 13W 2 Pin Dual/Quad |
| Lamp Type | 2-Pin LED PL |
| Lumens | 650 |
| Lumens Per Watt | 92.86 |
| Volts | 120 |
| CRI | 80+ |
| Color Temperature | 3500K |
| Dimmable | Yes |
| Base Type | GX23 |
| Beam Angle | 120° |
| Orientation | Horizontal |
| Lens Type | Frosted |
| Length (M.O.L.) Inches | 5.94 |
| Width (Inches) | 1.06 |
| Height (Inches) | N/A |
| Rated Hours | 50,000 |
| DLC Listed | No |
| Wet/Damp Rated | Damp Rated |
| Maximum Temp | 113°F |
| Minimum Starting Temp | -4°F |
| Certifications | UL |
| Case Quantity | 50 |
| Warranty | 5 Year |
| Manufacturer Part # | LED7W2PH/GX23/835-G7 |
| Manufacturer Order # | 09531 |
| Premier Part # | LPL35K7WHOR/B-E |
