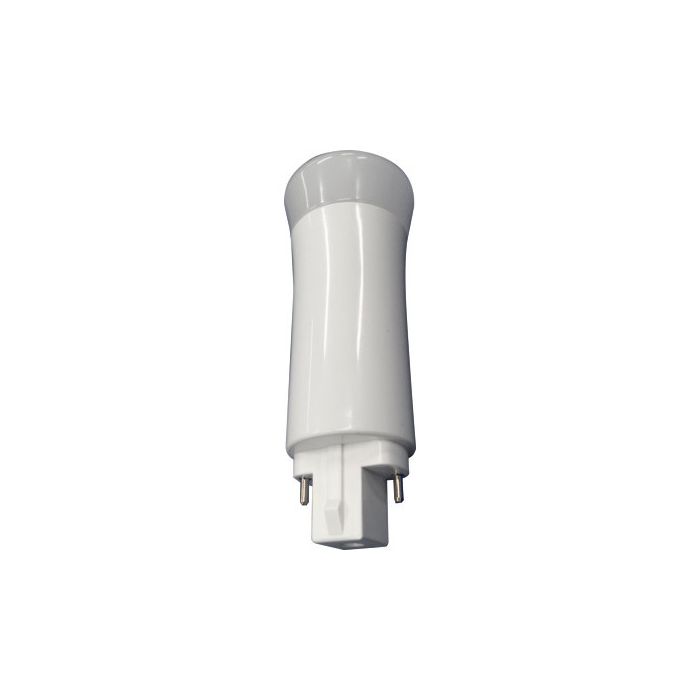

Eiko 09254 LED9W2PV/835DR-G6 9W 2-Pin Vertical LED PL Uses Magnetic Ballast
- Premier# LPL35K9WVERT/B-E
- Eiko 09254 LED9W2PV/835DR-G6 - 9W Type A Horizontal 2-Pin LED PL
Eiko 09254 LED9W2PV/835DR-G6 9W 2-Pin LED PL Uses Magnetic Ballast
Simplify the retrofit process with these LED PL lamps that work on the existing magnetic ballast. 9W horizontal LED PL is designed to replace 26W 2-pin quad lamps with a G24d-3 base. 9W vertical LED PL is designed to replace 13W/18W/26W 2-pin quads witha G24d-1, G24d-2, or G24d-3 base. No re-wiring necessary. Requires a CFL ballast to operate, but on average will last 5x as long as a CFL. Horizontal or vertical orientation. With the horizontal configuration, the base rotates for precise orientation once installed. Shatter-resistant for reduced risk of injury or breakage. Instant-on, no warm-up necessary unlike CFLs. Environmentally friendly - contains no glass, mercury or lead. This product works on many magnetic ballasts but we always advise getting your ballast part number and checking with Eiko to ensure it will work on your existing ballast..
Brochures & Cut Sheets
Eiko 9W 2-Pin or 4-Pin Magnetic Ballast Compatible LED PL Spec Sheet
Manufacturer | Eiko |
---|---|
Watts | 9W |
CFL Equivalent | 26W |
Lamp Type | 2-Pin LED PL |
Lumens | 850 |
Lumens Per Watt | 94.45 |
Volts | 120 |
CRI | 80+ |
Color Temperature | 3500K |
Dimmable | No |
Base Type | G24d-1 / G24d-2 / G24d-3 |
Beam Angle | 120° |
Orientation | Vertical |
Lens Type | Frosted |
Length (M.O.L.) Inches | 4.57 |
Width (Inches) | 1.77 |
Height (Inches) | N/A |
Rated Hours | 50,000 |
DLC Listed | No |
Wet/Damp Rated | Damp Rated |
Maximum Temp | 113°F |
Minimum Starting Temp | -4°F |
Certifications | UL |
Case Quantity | 50 |
Warranty | 5 Year |
Manufacturer Part # | LED9W2PV/835DR-G6 |
Manufacturer Order # | 09254 |
Premier Part # | LPL35K9WVERT/B-E |
